Battery charger

If you choose to quote any information found within the pages of this website, you do so at your own risk.
The author accepts absolutely no responsibility for any loss or damages
occurring from the use of the information contained by this website.

This project is not so important for those who ride a car every day. In my case, a car is not used every day. In that case, the voltage of a battery is falling and a car sometimes cannot be put into operation.
If the battery itself is left for a long period of time, the electricity of it will be lost by natural electric discharge. Furthermore, in the case of the latest car, various kinds of electric devices are always backed up more often with a battery. Therefore, even when the car is not being used, the electricity of a battery is consumed little-by-little.
I was creating and using the battery charger which used the solar battery before. However, it is not effective if the bad day of the weather continues.

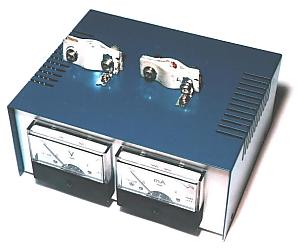

Then, I decided to create a small charger. Because I assumed always charging during parking, the charging current is controlled by the current control circuit. Moreover, in order to prevent over charge, it can be made to perform a setup of maximum voltage. General-purpose 3 terminal voltage regulator is used for control of voltage and current by each.


Wiring chart

Circuit explanation

Parts explanation

Making process

Check of operation

How to use
