Tilapia Topic, Aquaculture Environment, Carbon Dioxide

Carbon dioxide (CO₂) occurs naturally in water but the level varies depending on conditions.

Potential sources for CO₂ in water include:

• a byproduct of biological oxidation ( e.g. respiration of animals, plants and aerobic as well as anaerobic microbial metabolism);
• diffusion from the atmosphere;
• source water from deep wells or springs.

In tilapia ponds highest levels of CO₂ will occur:

• mid-night to predawn hours;
• during periods of prolonged overcast weather conditions and low sunlight; or
• following a phytoplankton crash in the pond.

Carbon dioxide is a gas that dissolves in water and acts as an acid with of the formation of hydrogen (H+) ions. Also, bicarbonate (HCO₃-) and carbonate (CO₃=) ions are formed. All dissociations are equilibrium reactions.

1. CO₂ + H₂O <---> H+ + HCO₃- <---> 2H+ + CO₃=

As CO₂ is increased hydrogen ions accumulate and the pH of the water declines. However, when the pH of water is ò 8.4, free CO₂ does not exist. Algae, however, can extract CO₂ from bicarbonates and carbonates until the pH reaches a level of about 10. In this way the uptake of CO₂ by algae tends to shift the form of alkalinity from bicarbonate to carbonate and carbonate to hydroxide as depicted by the equilibrium reactions below.

2. 2HCO₃- <---> CO₃= + H₂O + CO₂

3. CO₃= + H₂0 <---> 2OH- + CO₂

In production tilapia culture systems in Hawaii, microbial and fish respiration are the principal source of CO₂ in the culture water. However, some well or spring waters may contain high levels of CO₂ and low dissolved oxygen. Carbon dioxide should be measured periodically in the source water to establish a baseline for the site. Vigorous aeration of the water before use can drive off excess carbon dioxide and increase oxygen content.

Cyclic variations in the level of Carbon Dioxide

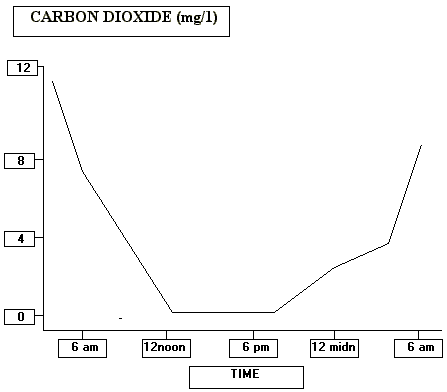

Since phytoplankton take-up CO₂ for photosynthesis, carbon dioxide declines during periods of high sunlight in phytoplankton rich culture water, but will increase at night. In addition, high CO₂ conditions usually follow a phytoplankto crash. Both plant and animal respiration contributes to CO₂ concentration which reaches peak levels just before sunrise. Thus, carbon dioxide level will vary on a diurnal cycle in culture ponds which carry a significant phytoplankton population. This has practical application because the time of day a water sample is collected for CO₂ analysis can, depending on the system, strongly influence the level of carbon dioxide measured by the analysis. A graphic representation of the pattern of CO₂ change over a 24 hour period in a phytoplankton rich pond is presented below:

Toxicity of Carbon Dioxide

Carbon dioxide alone is not appreciably toxic to tilapia unless fish are exposed to a very high level (> 50 mg/L) for an extended period. However, high environmental CO₂ results in low pH which reduces oxygen loading in the gills and contributes to tissue acidosis (depressed pH within organs and tissues). Moreover, hypoxia (low oxygen concentration) also can lead to acidic conditions in the tissues of fish. Thus, the combination of low dissolved oxygen and high CO₂ increases the harm done to the fish. When tilapia are raised at high biomass in plankton rich water, high CO₂ and low dissolved oxygen occur together (e.g. in the early morning hours, following a phytoplankton crash or during prolonged periods of heavy cloud cover and low sunlight). Signs of CO₂ toxicosis include extreme sluggish behavior, depression, loss of equilibrium and death.

Knowledge of the dynamics of carbon dioxide in water is important for assessment of a possible role of high CO₂ as a factor in a water quality problem affecting cultured tilapia. For example, when pH is > 8, free CO₂ will be very low and CO₂ need not be measured, unless the pond or container water is stratified (e.g. low pH and high CO₂ may exist in the bottom water).

Measuring Peak Concentrations of Carbon Dioxide

To assess peak concentration in pond water, samples should be collected just before sunrise or following a phytoplankton crash. In source water from a well or rapid flowing stream, diel changes are not probable and the timing of water collection should not be critical. Just as for pond water, an alkaline pH would preclude the presence of appreciable free CO₂. Carbon dioxide can be measured in water using commercially available test kits. However, care must be taken in how water samples are handled during and following collection for carbon dioxide analysis. The water container should be filled to allow water to overflow to remove water in the sample that has come into contact with air. Samples transported to the laboratory must not have any air in the container.

Treatment of High Carbon Dioxide Levels

High CO₂ can be temporarily removed from water by treatment with calcium hydroxide (slacked or hydrated lime - Ca[OH]₂). Carbon dioxide reacts with lime to form calcium carbonate and water. One milligram CO₂ per liter is converted by 1.68mg/L of hydrated lime. This treatment is only temporary and, if the conditions are appropriate, elevated carbon dioxide will reoccur. Dosage calculations for slacked lime removal of CO₂ are given in the Treatment Module.
