Case for Remote Door Lock

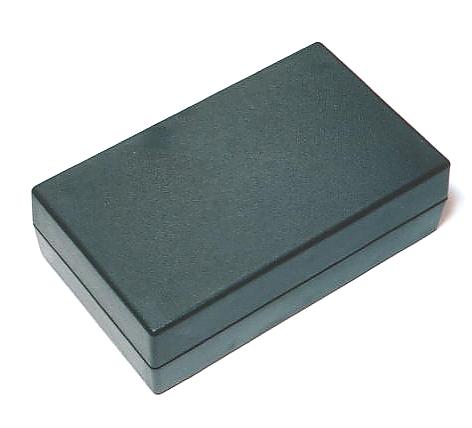

This is a case TB-32 made by T.SIN Co.. It has 60mm width, 100mm depth, 30mm height.

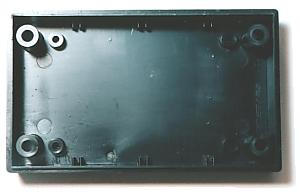

You can see the studs which fix a board inside the case.

These are the screws which fix a board on the case.
It's tapping screw of 3mm x 8mm.

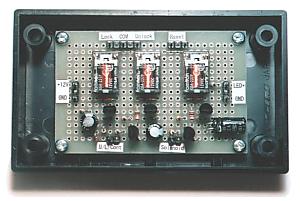

This is in the condition to have fixed a printed board on the case.

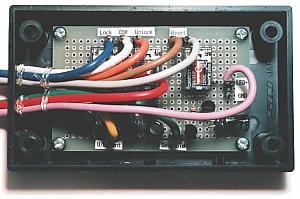

This is in the condition which made wiring a printed board. The wires are fixed with the vinyl wire.
