Remote Door Lock

If you choose to quote any information found within the pages of this website, you do so at your own risk.
The author accepts absolutely no responsibility for any loss or damages
occurring from the use of the information contained by this website.

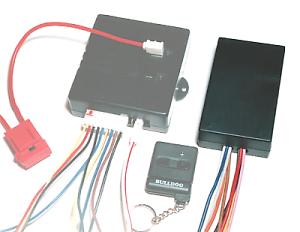

Recently, many cars are equipped with Remote Car Door Controller called Keyless entry. On this page, I will introduce the equipment which changed a remote control for the engine start into the door lock. The equipment which I used is REMOTE STARTER MODEL RS82I which is made by BULLDOG SECURITY Inc. in U.S.A. The original use is the equipment to start an engine from the car outside when cold, and so on. If you want to buy the door lock controller newly, it's better to buy the KEYLESS ENTRY.

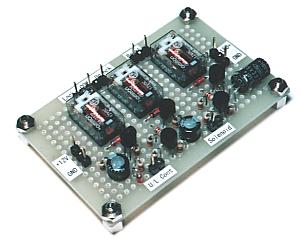

The purpose of this page is to introduce the circuit which makes the pulse signal using the rising edge or falling edge of the input signal.


Board pattern

Circuit explanation

Parts explanation
