Remote Starter MODEL RS82I

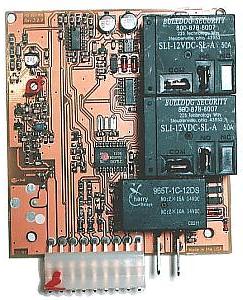

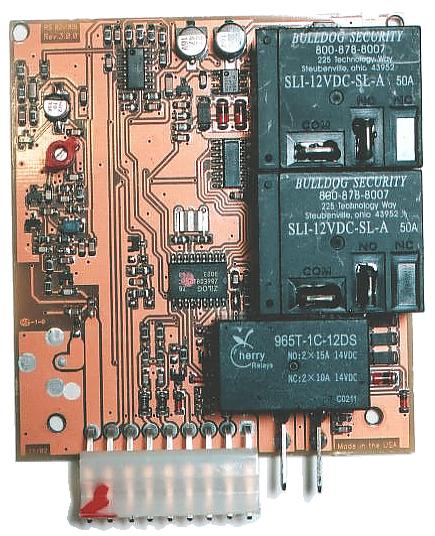

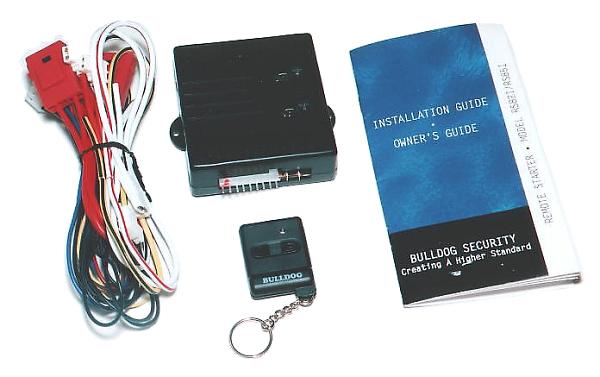

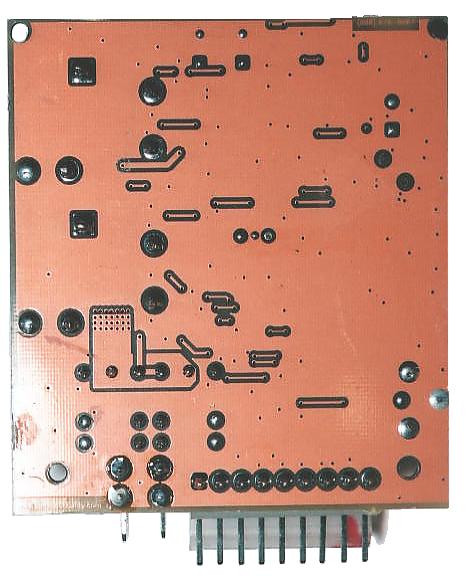

The contents of the set are a main unit, a transmitter, wiring materials and a manual. This is the component side photograph of the main unit. You can see the radio receiving circuit at the left side of the board. This is the back photograph of the main unit. Most of the wiring are done at the component side. This is the wiring diagram which is carried on the manual. This time, I used the wires squarely surrounded.
