From basic gates, we will develop a full adder circuit that adds two binary numbers. Consider adding two 2-bit binary numbers and . , where is the carry bit. The truth table for all combinations of and is shown in table 7.5.

**Table 7.5:** The binary addition of two 2-bit numbers. The
column.

From the truth table

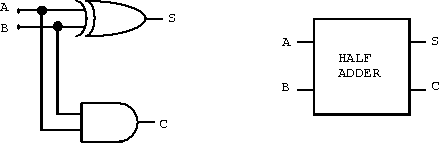

The mechanization of these two equation is shown in figure 7.7.

**Figure 7.7:** A mechanization of the half adder using an
EOR and an AND gate.

This circuit is known as the half adder. It can not handle the addition of any two arbitrary numbers because it does not allow the input of a carry bit from the addition of two previous digits. A circuit that can handle these three inputs can perform the addition of any two binary numbers.

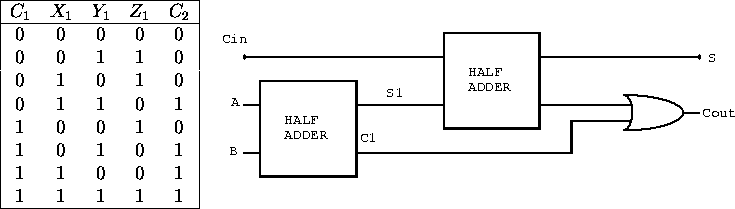

The truth table for three input variables is shown in figure 7.8.

**Figure 7.8:** The binary addition of two 2-bit numbers. The
column.

From the truth table

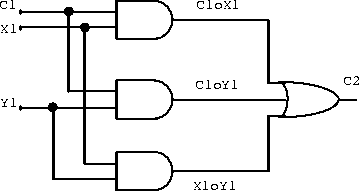

This is known as majority logic. And a majority detector is shown in figure 7.9

**Figure 7.9:** A mechanization of the majority detector.

The following device (figure 7.10) is known as a full adder and is able to add three single bits of information and return the sum bit and a carry-out bit.

**Figure 7.10:** The full adder mechanization.

The circuit shown in figure 7.11 is able to add any two numbers of any size. The inputs are and , and the output is .

**Figure 7.11:** A circuit capable of adding two 3-bit numbers.

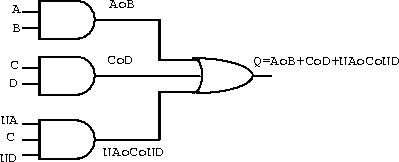

Example:If the input to the circuit in figure 7.12 is written as a numberABCD, write the nine numbers that will yield a trueQ.

Figure 7.12:A typical logic function.

Table 7.6:The truth table for the typical logic function example.

ABCD=(2,3,6,7,11,12,13,14,15) givesQtrue.

Example:Using the 2's complement convention, the 3-bit numberABCcan represent the numbers from -3 to 3 as shown in table 7.7 (ignore -4). Assuming that A, B, C and are available as inputs, the goal is to devise a circuit that will yield a 2-bit output EF that is the absolute value of the ABC number. You have available only two- and three-input AND and OR gates.

Example:Suppose that the 2-bit binary numberABmust be transmitted between devices in a noisy environment. To reduce undetected errors introduced by the transmission, an extra bitPis often included to add redundancy to the information. Assume thatPis set true or false as needed to make an odd number of true bits in the resulting 3-bit numberABP. When the number is received, logic circuits are required to generate an error signalEwhenever the odd number of bits condition is not met.

- Develop a truth table of
Ein terms ofA,BandP.The truth table is shown in table 7.8.

Table 7.8:Truth table for E in terms of A, B and P.

- Write a Boolean expression for
Eas determined directly from the truth table.

- Using De Morgan's theorem twice, reduce this expression to one
EORand oneNEORoperation. (This is very similar to the half-adder problem.)
