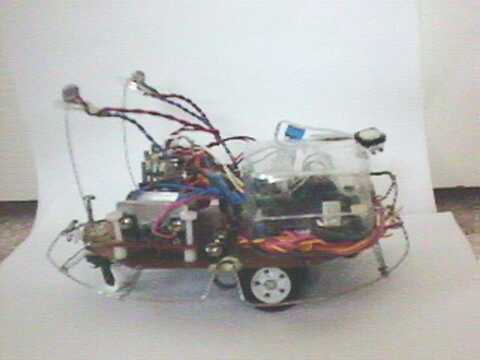

This Project has been designed for building a Robot using the 'SX52 Ethernet Board Starter Kit' as an entry into the SXList embedded ethernet starter contest.
The Firmware will allow the User to Remote 'Drive' the Robot and view through the Robot Camera on a PC via an Ethernet cable.
Files included :
My_Demo_2-1.src - The Ethernet/Cam/Motors PIC Asm
Cam-Joystk-4.html - The web page to be served by the ethernet demo board.

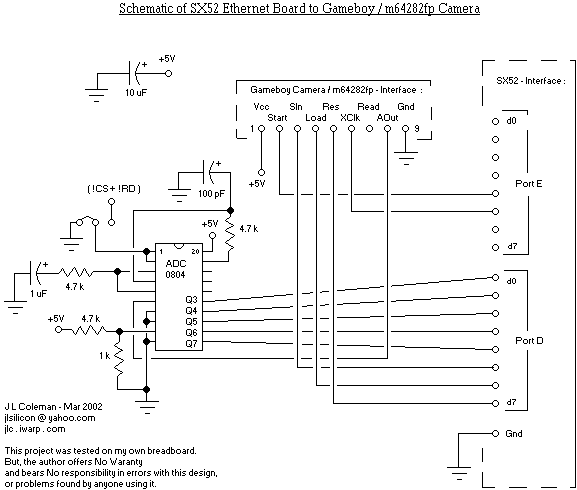

Sch_Camera_2-1.gif - Schematic of Camera hookup

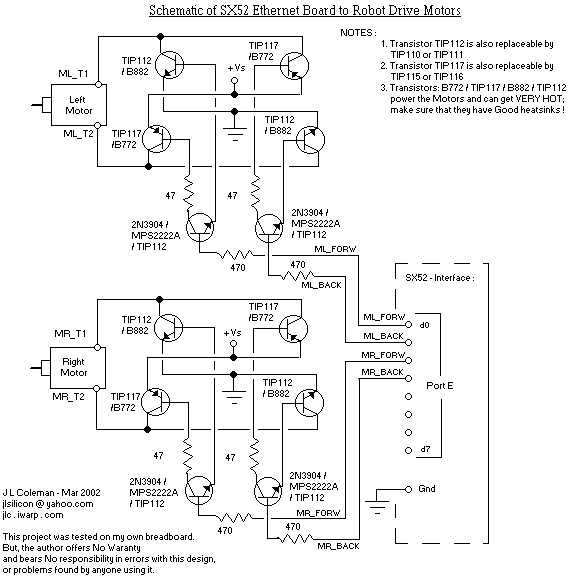

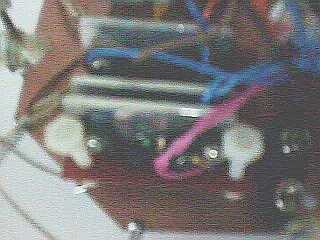

Sch_Motor_2-3.gif - Schematic of motors hookup
Readme.txt - This Howto file
Fine print (the usual):
I have tested these on my own applications, but No waranty or responsibility is placed upon the author of any of these Design files or problems/errors resulting from them.
