AOLpress Help

---

Insert Java Applets

There are several ways to insert a Java applet into a page:

• Choose Element Java Applet to open the Applet window and select an applet.
• Copy and Paste or drag-and-drop a class file from a MiniWeb to a page. The applet is added to the page and the Applet window opens automatically along with a list of parameters if one is available.
• Copy and Paste or drag-and-drop the applet from another page.

The first two methods above open the Applet window. In addition, you  can change parameters in the Applet window if you select an applet and choose Element Java Applet.

Using the Applet window:

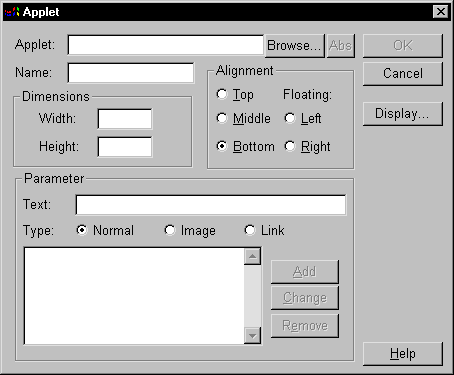

1. Choosing Element Java Applet while the cursor is positioned where you want the Java applet to appear, opens the Applet window:

2. Type the location of the applet's class file or click the Browse button and select a class file. (Note that some applets are made up of multiple Class files. You need to select the main class file for the applet in order for the applet to run correctly.)
   • You can use the Rel/Abs button to switch between relative and absolute links to the applet file.
   • You can click the Display button to see the Java source file for the class file you have selected (if they are both in the same directory).
3. Give the applet a Name if applets will need to communicate with each other.
4. In the Width and Height fields, type the display size (in pixels) of the applet.
5. Select how you want to align the applet with the text that follows it. The choices are the same as for images: Top, Middle, Bottom, Left, and Right. See "Inserting Images" for examples.
6. Many applets let you set parameters to control how the applet will run. For example, an applet that runs a slide show may let you set the speed at which the slide show will run.

   If someone has created a parameter file for this applet (or if the Java source file is in the same directory), AOLpress prompts you for parameter values when you drag the applet from a MiniWeb to a page. See "Creating Applet Parameter Files" for details on creating parameter files.

   Otherwise, you will need to enter parameters and their values by hand. For each parameter:

   • In the Parameter Text field, type the name of the parameter, an equal sign, and the parameter's value. Here are some examples:

       speed=10
       nextpage=page2.html



   • In the Type field, select which type of parameter this is. If the value is the name of an image file, select "Image". If the value is the name of a page or some other type of URL, select "Link". For all other types of parameter values (such as, text, numbers, and dates), select "Normal".
   • Click the Add button to add the parameter to the list.
   • You can Change or Remove parameters after you add them to the list.
7. When you are finished, click OK to place the applet in your page.

Applet Parameters

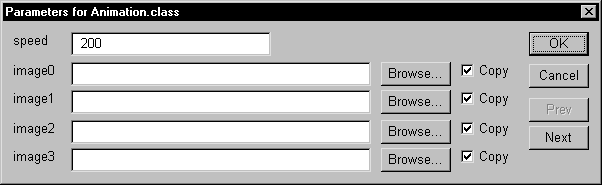

If AOLpress can figure out what parameters are needed for a given applet, it will pop up a customized window designed for that applet:

Non Java-Enabled AOLpress

AOLpress currently does not display Java Applets (pending licensing agreement). You may still edit applets in this environment, and AOLpress will display them as a rectangle of the correct size with a cross in it.

Sometimes it is convenient to display applets as they will appear in most non java-enabled browsers, this may be done by opening the general preferences window and changing the state of the Show Java Windows checkbox.

To insert an applet both with the applet and some alternative text to be displayed by users of non-java enabled browsers:

• Select a region of text within a paragraph
• Build an applet on top of it, either by
  • dropping an applet onto it from a miniweb
  • bringing up the applet window directly

Thereafter java-enabled browsers will display the applet, and non java-enabled browsers will display the originally selected text.
