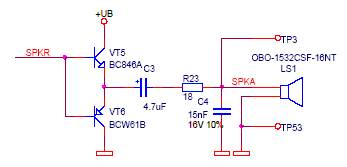

The SPKR line is driven by TIOCB1/TCLCKC, pin 4 of the HD6472246 (the H8S main processor). UB is the unregulated battery supply so there should be a 2.4 volt swing before the 18 Ohm R23.
