Detailed photograph of wiring of display unit

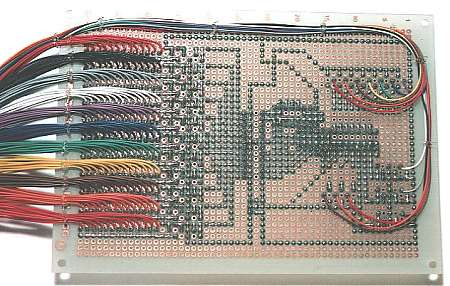

This is wiring of the control circuit. The bunch of the left wiring is wiring to a category display LED. Wiring of each line is fixed on the printed board with the vinyl string. The other wiring is tied by the vinyl string and it is fixed on the printed board at some.

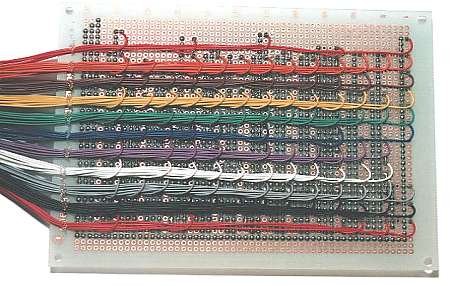

This is wiring of the diode matrix. It is the wiring which connects between the anode of the diode and the cathode of the category LED. The color of the wire is made same with the control circuit. There are 109 wires.

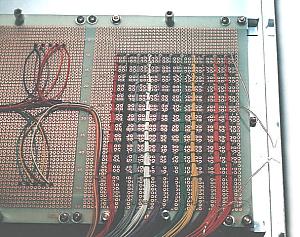

	This is the situation to have ended anode wiring of the category display LED. First, it fixes wiring from the control circuit on the bottom side of printed board with the vinyl string. At this time, it is necessary to adjust the length of the wiring from the control circuit. It considers that the cathode wires and it arranges wiring in the middle with the LED. The other wire is tied with the wire which connects with the anode to fix wiring.

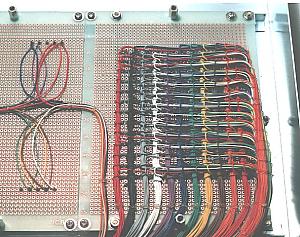

	This is the situation to have ended cathode wiring of the category display LED. The wiring to a cathode is wiring from the diode matrix. Wiring to a cathode is divided from the bunch wire which is put on the right. This wiring must be made the same as the wiring of the diode matrix. It is necessary to wire while confirming a connection place.

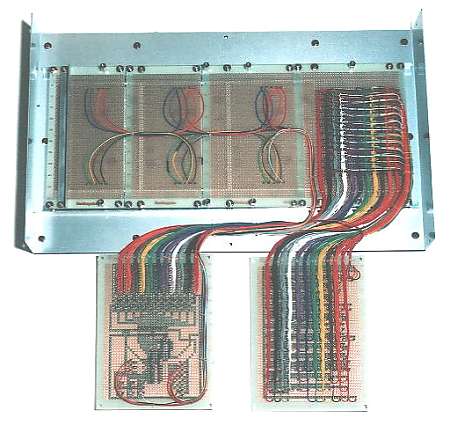

This is in the condition to have ended all wiring.

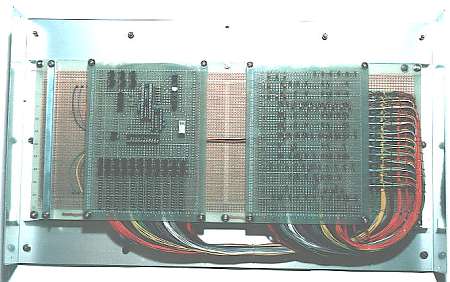

This is in the condition which put a control circuit and a diode matrix.
