Ramp oscillator
On this page, I will introduce the printed board pattern for Sawtooth wave oscillator with EAGLE.
This pattern is still under constructing. So, may do some modifications.

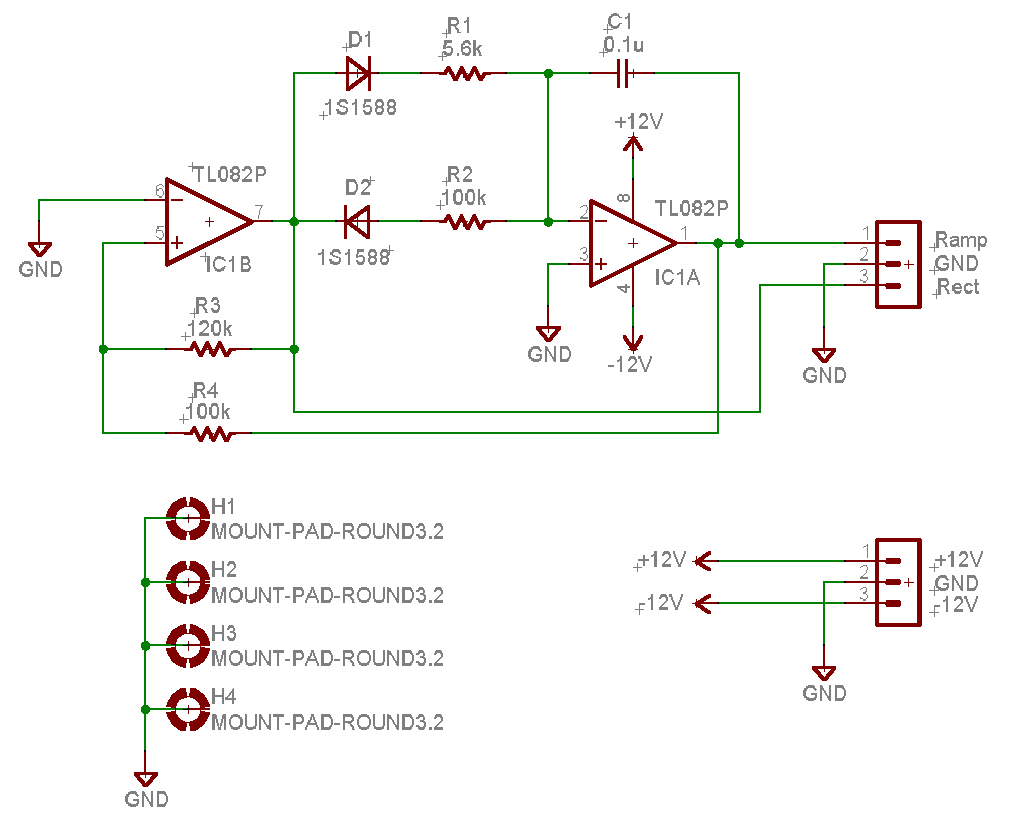

Circuit drawing

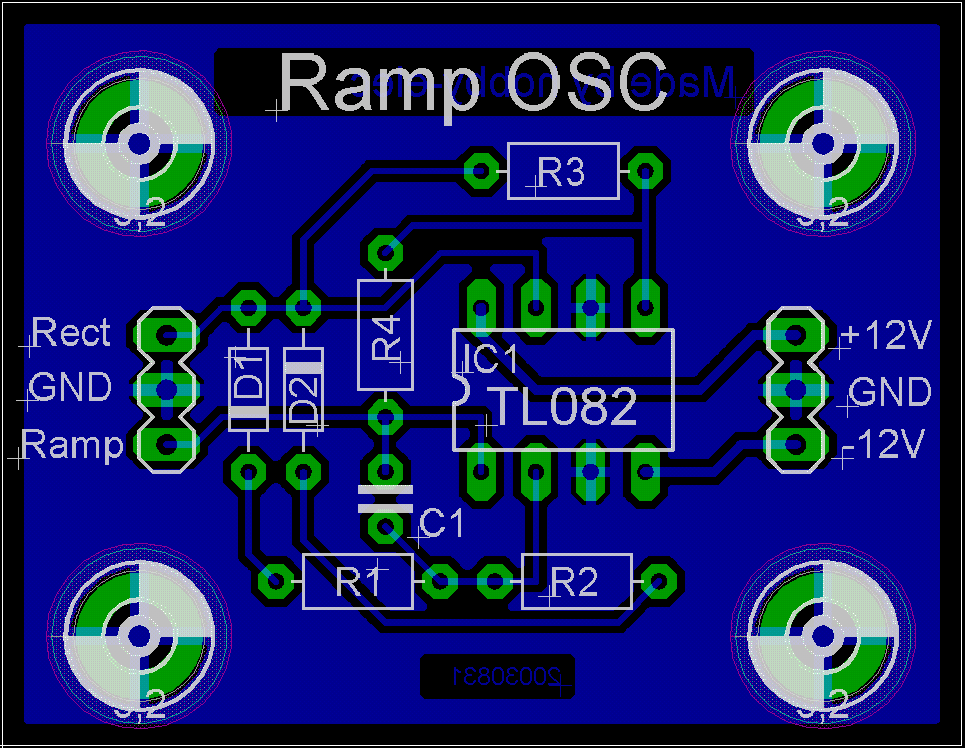

Pattern drawing

The size of this printed board is 44.5 x 34.5 mm.

You can browse bigger size drawing by clicking each drawing.
