Circuit drawing
of CPLD Programmer


This circuit diagram is based on the information which the Xilinx Inc. makes open on the following site for the person who want to build own download cable.

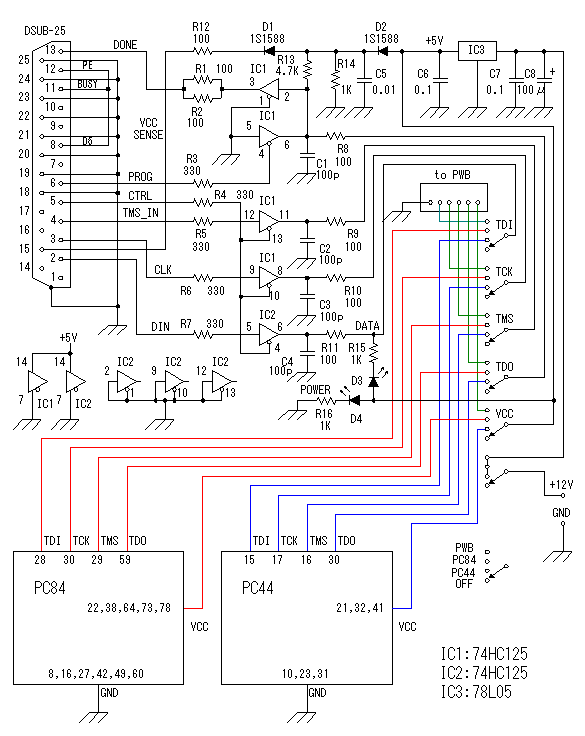

JTAG Parallel Download Cable Schematic
