Transistors

The transistor's finction is to amplify an electric current.
Many different kinds of transistors are used in analog circuits, for different reasons. This is not the case for digital circuits. In a digital circuit, only two values matter; on or off. The amplification abilitiy of a transistor is not relevant in a digital circuit. In many cases, a circuit is built with integrated circuits(ICs).

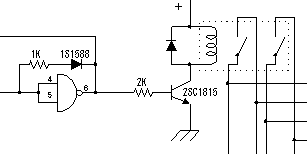

Transistors are often used in digital circuits as buffers to protect ICs. For example, when powering an electromagnetic switch (called a 'relay'), or when controlling a light emitting diode. (In my case.)

Two different symbols are used for the transistor.

PNP type and NPN type

The name (standard part number) of the transistor, as well as the type and the way it is used is shown below.
    2SAXXXX PNP type high frequency
    2SBXXXX PNP type low frequency
    2SCXXXX NPN type high frequency
    2SDXXXX NPN type low frequency
The direction of the current flow differs between the PNP and NPN type.
When the power supply is the side of the positive (plus), the NPN type is easy to use.




Appearance of the Transistor
    The outward appearance of the transistor varies. Here, two kinds are shown.




On the left in the photograph is a 2SC1815 transistor, which is good for use in a digital circuit. They are inexpensive when I buy them in quantity. In Japan it costs 2,000 yen for a pack of 200 pieces. (About 10 US cents/piece in 1998)

On the right is a device which is used when a large current is to be handled. Its part number is 2SD880.





The electrical characteristics of each is as follows.

Item2SC18152SD880
VCEO(V)5060
IC(mA)1503A
PC(mW)40030W
hFE70 - 70060 - 300
fT(MHz)803


VCEO: The maximum voltage that can be handled across the collector(C)
and emitter(E) when the base(B) is open. (Not connected)
(It may be shown as VCE)
IC:The maximum collector(C) current.
PC: Maximum collector(C) loss that continuously can cause it consumed
at surroundings temperature (Ta)=25C
(no radiator)
hFE: The current gain to DC at the emitter(E).
(IC/IB)
fT:The maximum DC switching frequency. (the transision frequency)


Data sheet for 2SC1815




Component Lead of the Transistor

Because the component leads differ between kinds of transistors,
you need to confirm the leads with a datasheet, etc.





Example of 2SC1815 transistor
Part number is printed on the flat face of the transistor, and indicates the front.

Right side : Base
Center : Collector
Left side : Emitter






Example of 2SD880 transistor
Part number is printed on the flat face of the transistor, and indicates the front.

Right side : Emitter
Center : Collector
Left side : Base

2SC1815 is opposite.
