SFR of PIC16F628

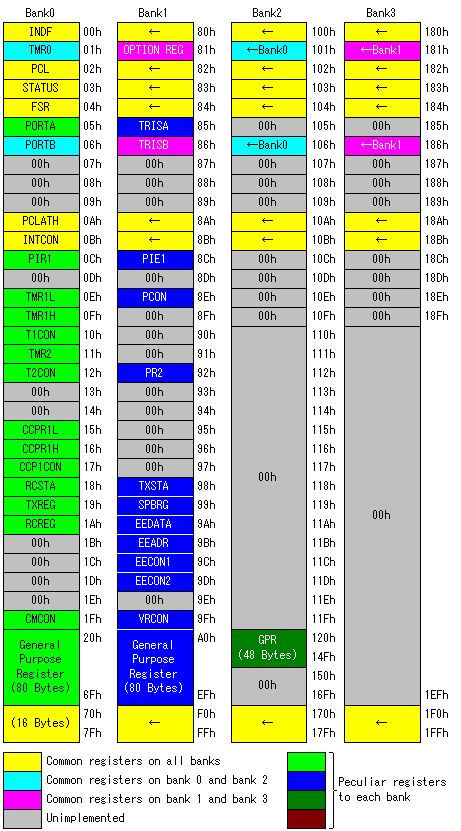

The RAM register file of PIC16F628 is divided into four like PIC16F873. Each size is 128 bytes. SFR(Special Function Registers) are allocated at 32 bytes from the head of each bank. After the 33rd byte is the register area which is possible to use freely. However the area which can be used is different from 873.
