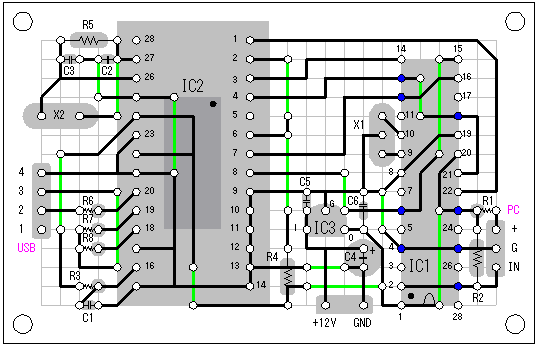

Pattern drawing of Wind gauge



The pins of the blue mark of IC1 are used as a relay terminal.
Therefore, those ports must be set as an input mode.

Pin	Name		Pin	Name		Pin	Name
4	RA2		12	RC1		23	RB2
6	RA4		13	RC2		25	RB4
			18	RC7		27	RB6
