Making process of Display control unit of RCC

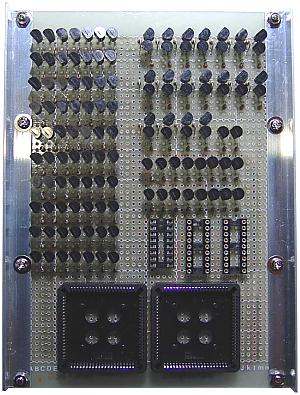

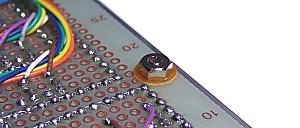

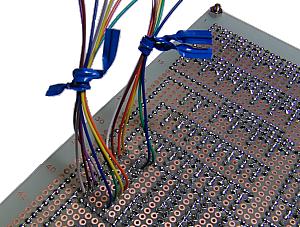

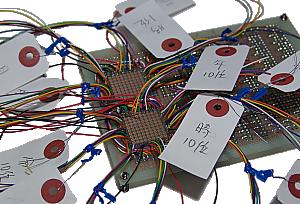

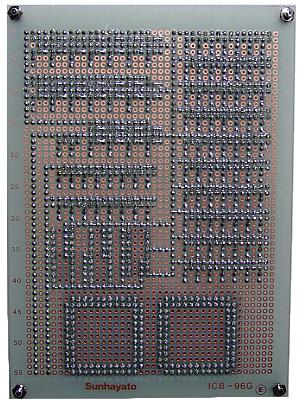

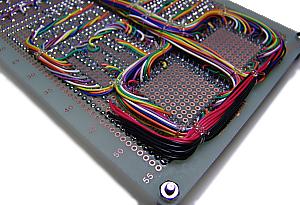

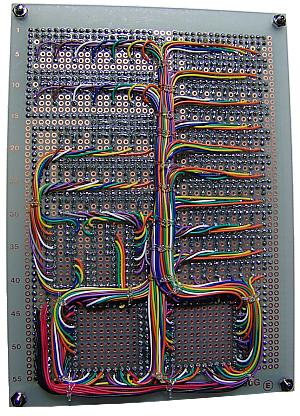

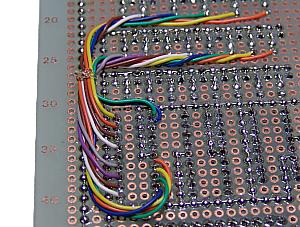

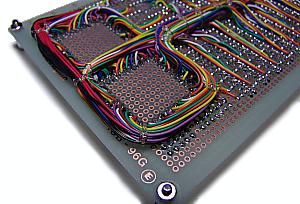

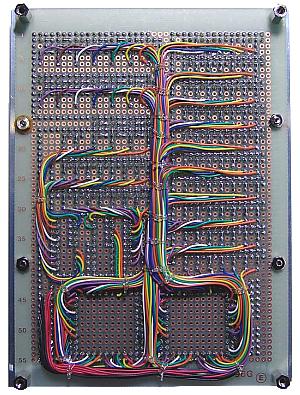

This is the picture which mounted all parts. This is a wiring side before wiring. It bundles in order to prevent the mistake in the color of wiring. Wiring is fixed with the string of vinyl. Because there is very much wiring of CPLD, the label is attached in order to prevent faulty wiring. Wiring of CPLD is bundled so that a terminal may appear. There is 160 wiring in all. The bakelite washer is used to prevent contact between the screw to fix a printed board reinforcement stick and the wiring. This is the picture that wiring was ended. This is the component side of the Display conrol unit. This is the wiring side of the Display conrol unit.
