Making process of CPU unit of RCC

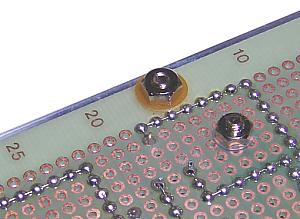

A thin pattern is drawn to the end on the printed board of the LCD. The plastic washer is used to prevent damaging a pattern by the screw.To improve the strength of the printed board, an L-shaped aluminum stick is installed in the both edges. The bakelite washer is used to prevent contact between the screw and the wiring.

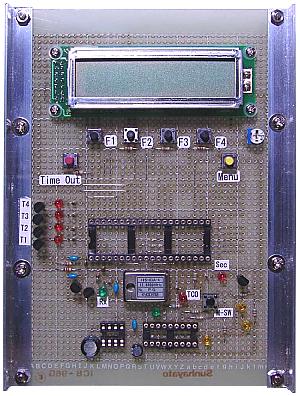

This is the component side of the CPU unit.
Paper with the paste is used for the name of the switch and so on.

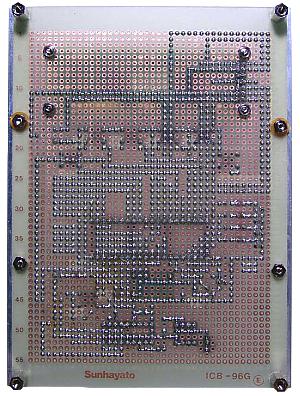

This is the wiring side of the CPU unit.
