555 timer
On this page, I will introduce the printed board pattern for 555 timer with EAGLE.
This pattern is still under constructing. So, may do some modifications.

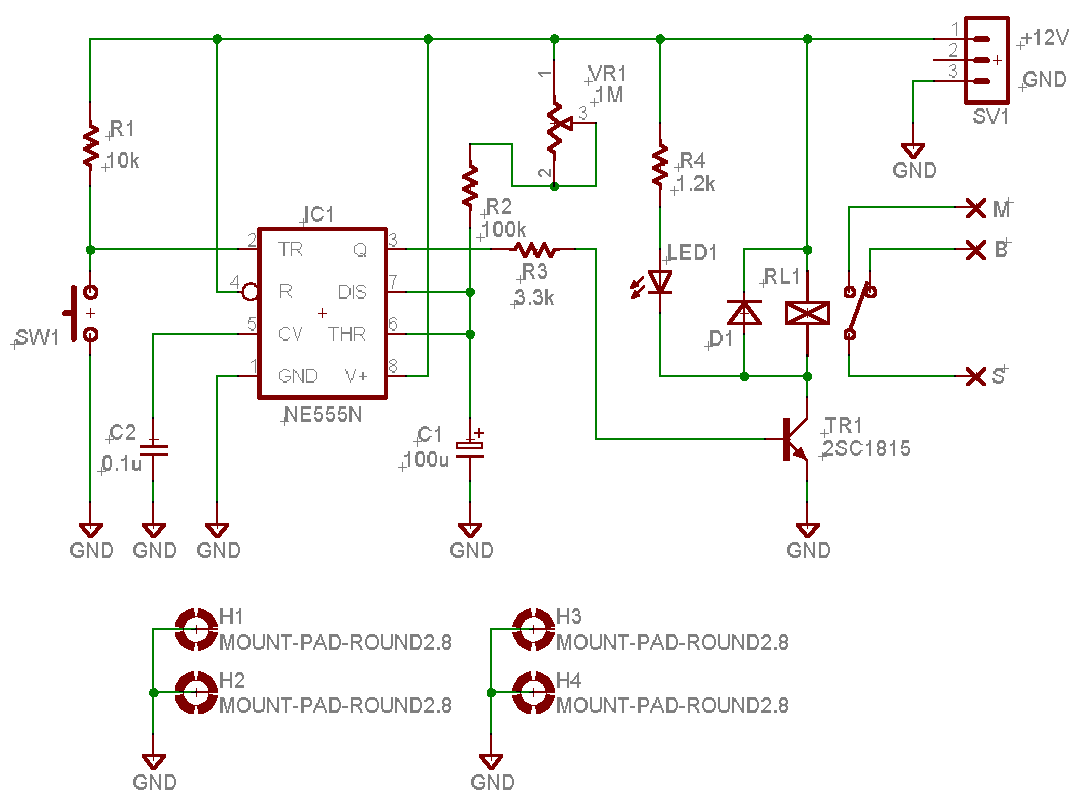

Circuit drawing

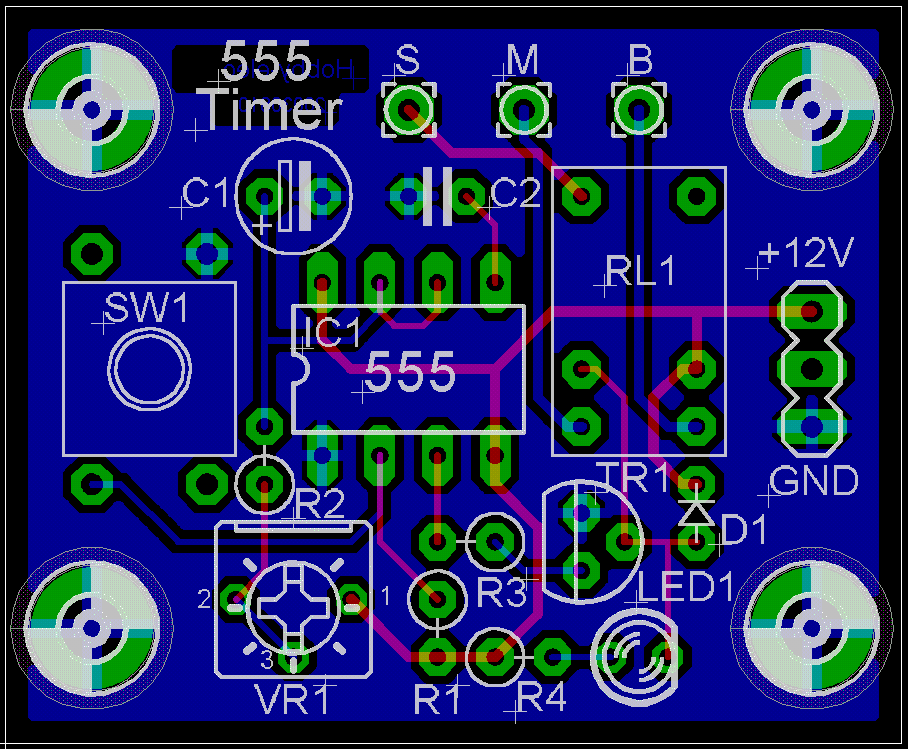

Pattern drawing

The size of this printed board is 39.5 x 32.5 mm.

You can browse bigger size drawing by clicking each drawing.
