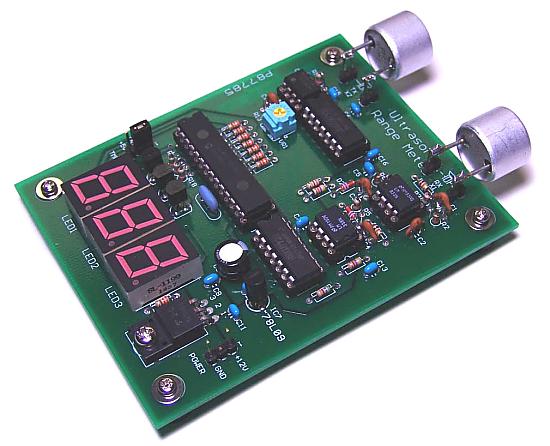

Ultrasonic Range Meter Ver2
On this page, I will introduce the modified printed board pattern for Ultrasonic Range Meter with EAGLE.
The oscillation circuit of the transmitter was added. An oscillation circuit by 555 IC is used for a modified circuit. This is to adjust an oscillation frequency easily. Thereby, it is necessary to change the software.

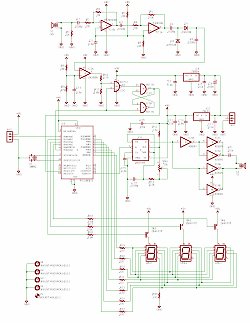

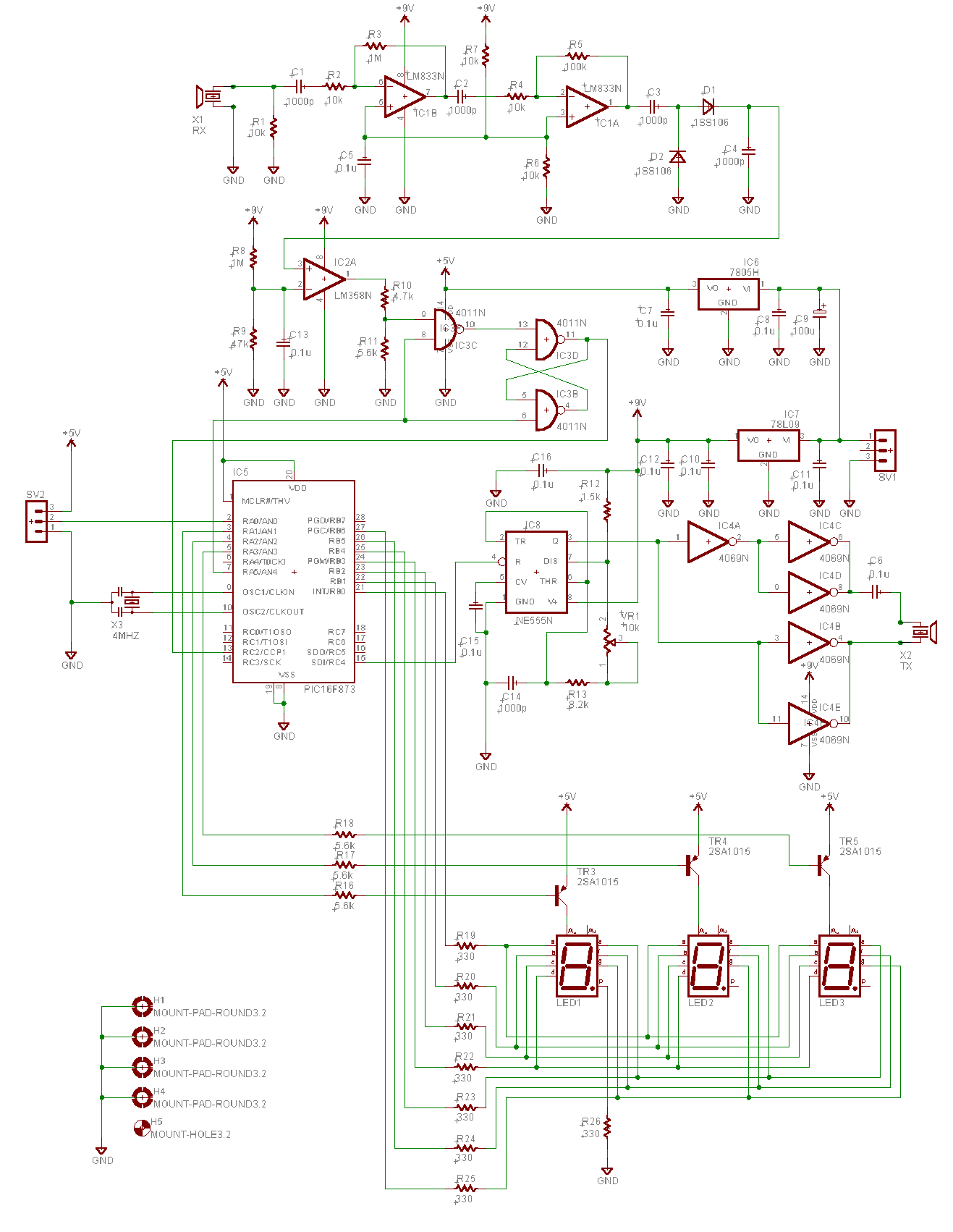

Circuit drawing

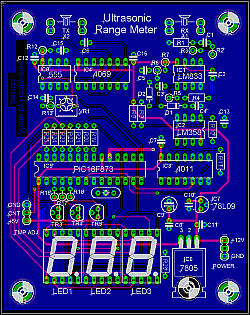

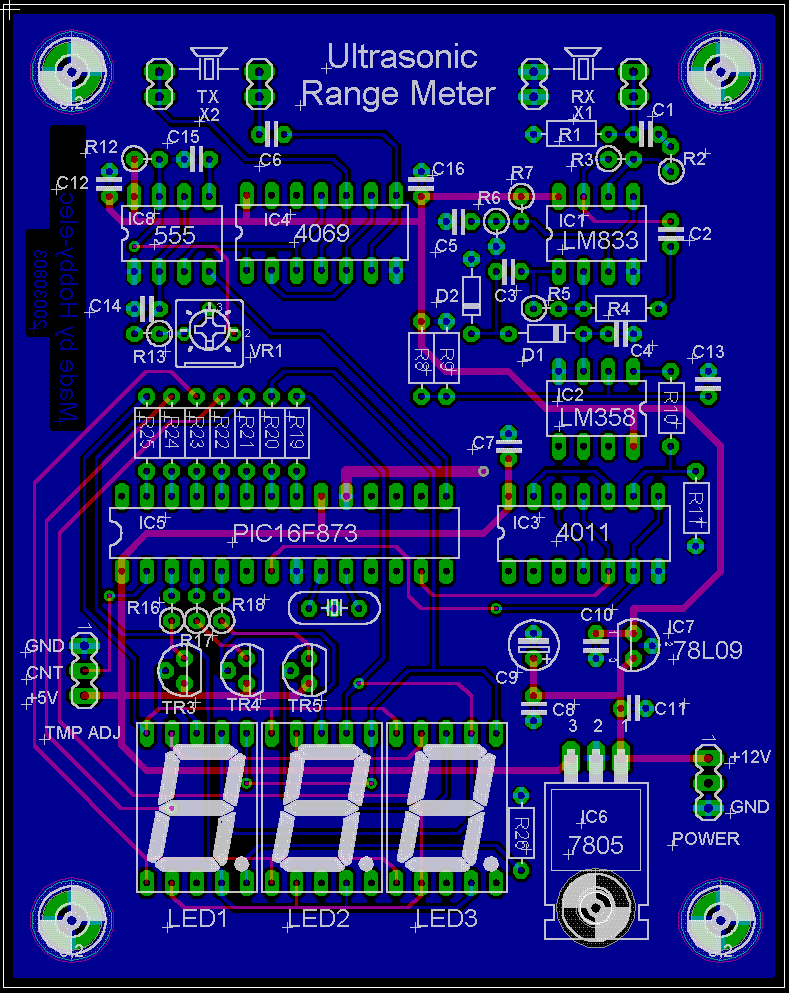

Pattern drawing

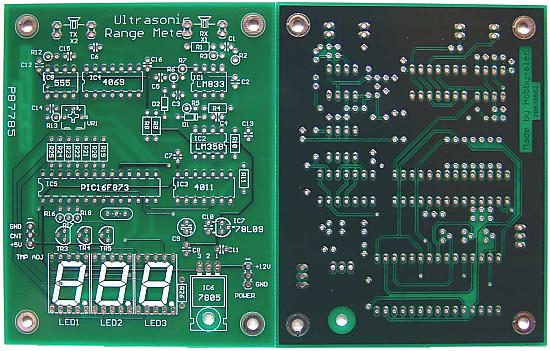

The size of this PCB is 3.94 x 3.13 inch.
You can browse bigger size drawing by clicking each drawing.

PCB Gerber fileeagle_dstmeter.zip
PIC Source programurm_v2_source.zip
PIC HEX fileurm_v2_hex.zip
