EAGLE Pattern Gallery
Infrared Detector
On this page, I will introduce the printed board pattern for
Detection unit for the infrared sensor
with EAGLE.

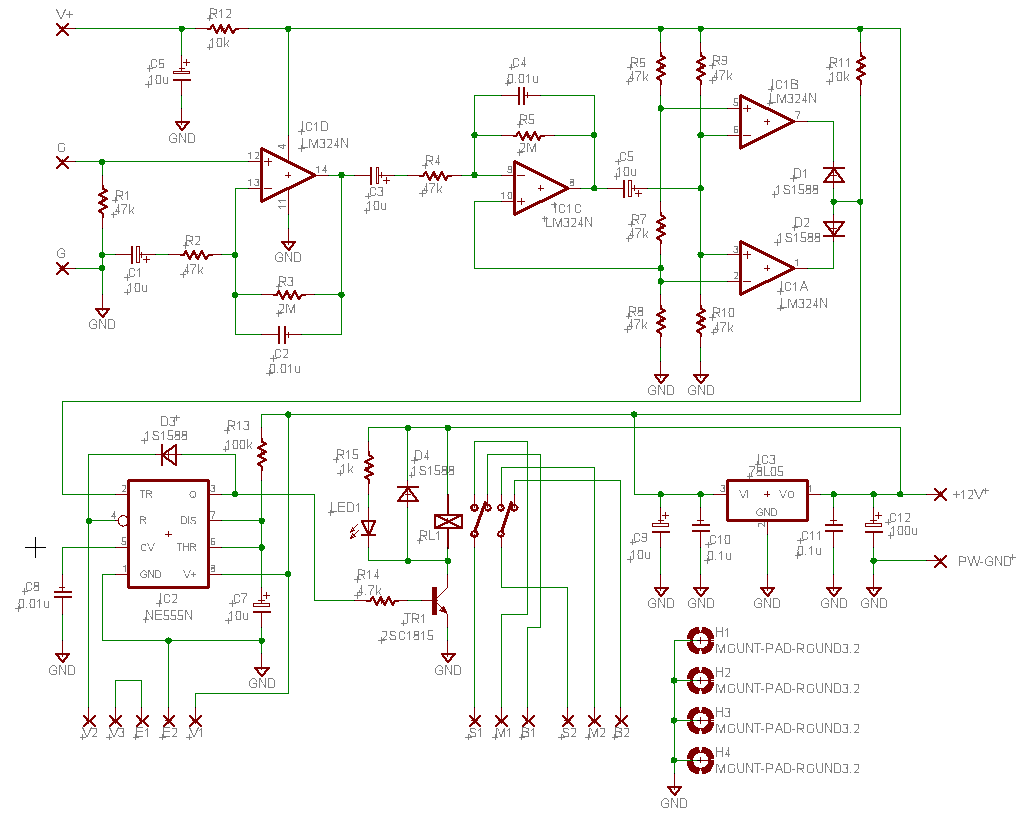

Circuit drawing

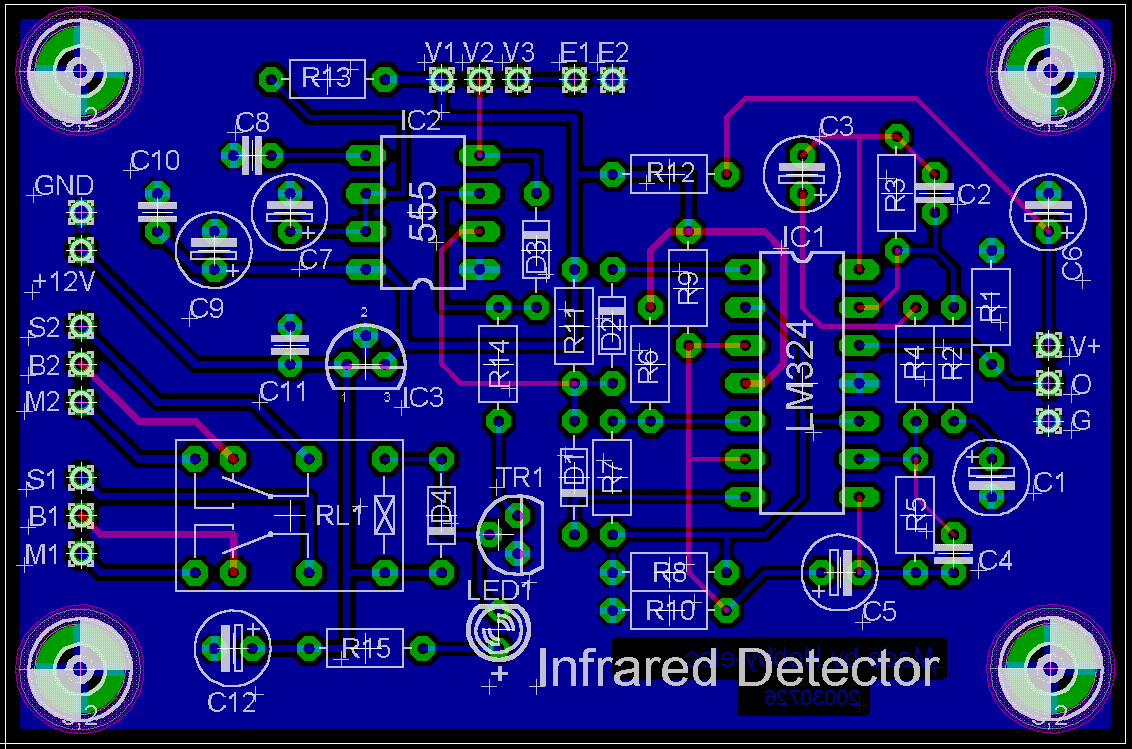

Pattern drawing
The size of this printed board is 2.95 x 1.95 inch.
PCB Gerber file
eagle_infrared.zip
You can browse bigger size drawing by clicking each drawing.
Circuit drawing
Pattern drawing
The size of this printed board is 2.95 x 1.95 inch.
PCB Gerber file
eagle_infrared.zip
