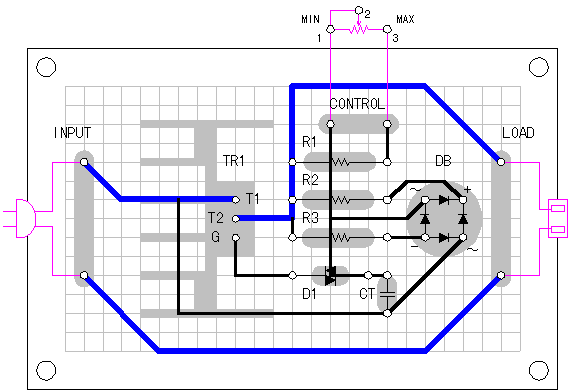

Pattern drawing
of the electric power controller
(Wiring side)



It uses the thick wire because the big electric current flows through the wiring which is shown in the blue.
I used the tin plating wire of 1.2 mm for the wiring.
The one which is shown in the pink shows the parts of the external.
