Mask pattern and Parts mounting drawing
of Step-down converter
(MC34063A)

Mask pattern drawing


You can download the file which was made with the Visio by clicking the following file name.
The compressed file is made with the self extract type.
sw-reg.zip
Three kinds of the mask patterns of Step-Up, Step-Down and Inverting are stored in this file.

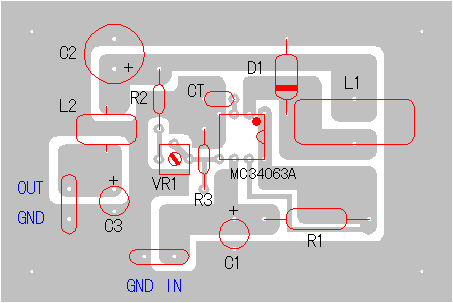

Parts mounting drawing
