of PLL synthesizing oscillator (1)
The circuit which was made this time is using the printed board of 100 x 75 mm.

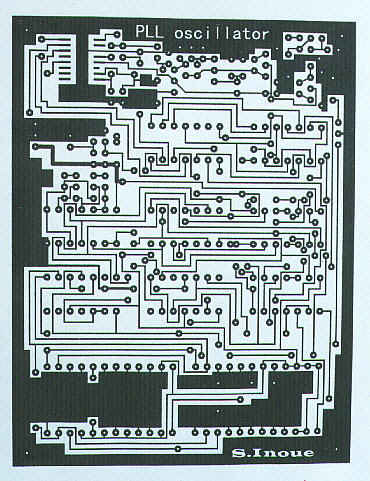

Because the pattern figure which was shown above is the photograph, it is not the full-size.
The file which was made in Visio can download when you click the following.
