Pattern drawing
of the temperature controller
of the bending apparatus

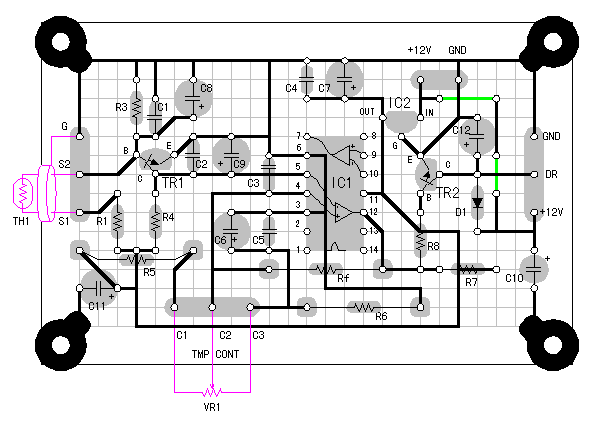

Temperature derector

The pink line shows the external parts.
The olive-green line shows the wiring at the component side.

---

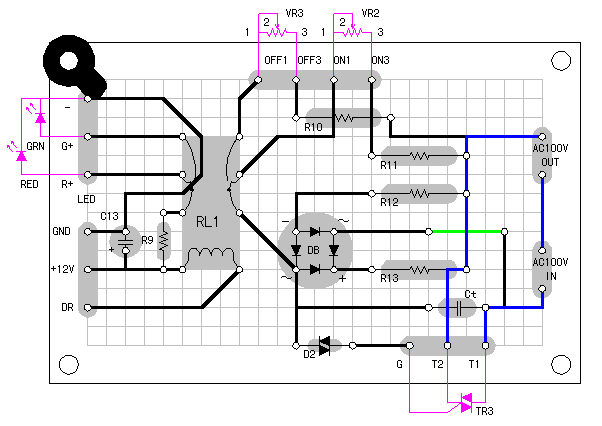

Electric power controller

The pink line shows the external parts. The thick wire is used because the big electric current flows through the wiring which is shown in the blue. I used the tin plating wire with the 0.6-mm diameter. The olive-green line shows the wiring at the component side.
